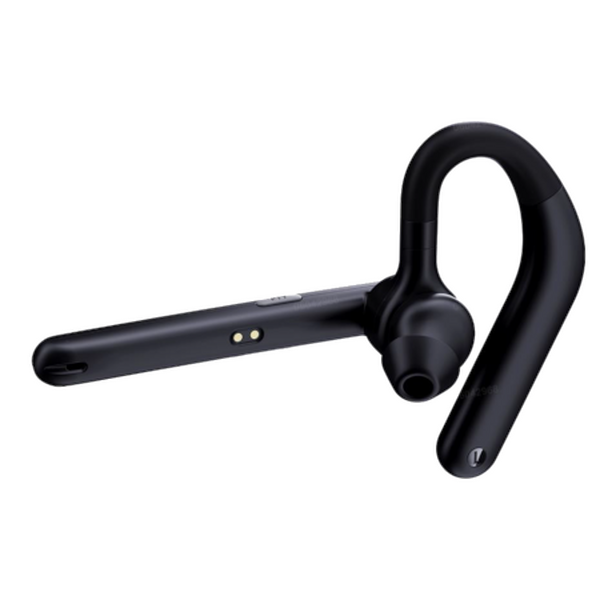

EHW09
EHW09 - BT Earpiece, IP54, Type-C port (NLR) - for PT590 --- No longer sold in the EU, but still available for UK. -- The 6-pin USB-C connector used at the EHW09 does not comply with the EU Directive on common chargers (in force since December 28, 2024).
Wireless Earpiece, Bluetooth V5.3, Hytera Logo, IP54
- Supporting 5 hours of battery life
- Lightweight and comfortable for long-time wearing
- Dual microphone noise reduction technology, clear communication;
Note: The EHW09 devices can only be ordered from the UK purchase portal, as they are equipped with a 6-pin USB-C connector, which does not comply with the Common Charger Directive of the EU that has been in effect since December 28, 2024.
You can find more details in the
Guidance for the interpretation of the Common Charger Directive
6-pin USB-C sockets cannot be used for charging because they do not comply with the EN IEC 62680-1-3 standard (12, 16 and 24 pins).
Highlights
Functions
Technical Specifications
Specifications
- Dimensions (mm)
- 91.5 x 43 x 30.9
- Weight
- about 18 g
- Color
- black
- PTT button
- available
- Charging port
- USB Type-C
- Microphone sensitivity
- -38dB ±3dB @1kHz 2.0V 2.2K, 0dB=1V/Pa
- Speaker power
- rated 5 mW
- max 8 mW
- Speaker impedance
- 16 Ω ±15% @1kHz
- Speaker sensitivity
- 120 dB ±3dB @ 0 dBFS / 1 kHz
- Communication protocol
- Bluetooth V5.3, A2DP 1.3, AVRCP 1.6, HFP 1.7, SPP 1.2
- BT range
- 10 m
- Certification
- CE
- Battery life
- about 5 hours
- Charging time
- about 2 hours
- Ingress protection
- IP54
- Operating temperature
- -20°C to 60 °C
- Storage temperature
- -40°C to 60 °C
- Suitable radios
- PT590
