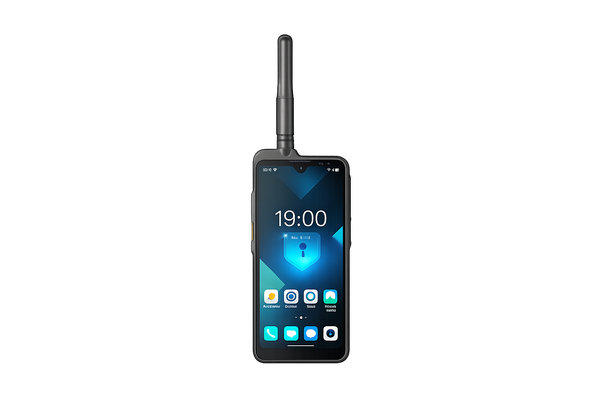

PNC660 450MHz MCX
PNC660 450MHz MCX Smart Device
The PNC660 450MHz features advanced hardware and top-tier security tech for reliable 5G communication, equipped with a CC EAL5+ compliant security chip and comprehensive protection mechanism. Compliant with the 3GPP R15 standard, the PNC660 450MHz delivers high reliability for critical missions. Its intuitive design, integrated with industry applications, enhances efficiency and usability.
Highlights
Speaker (Top)
Emergency Key
Top Microphone
Toggle Switch
Programmable Key
Push-to-Talk (PTT) Key
Volume Up Key
Volume Down Key
Receiver
Front Camera
LED Indicator
Touchscreen
Battery Cover
Flash
Rear Cameras
On-off Key (with fingerprint recognition)
Speaker (Bottom)
USB Type-C Port
Bottom Microphone
Functions
Highlights of PNC660
MCX Service
Compliant with 3GPP Release 15 standards, the PNC660 supports MCPTT (Mission-Critical Push-To-Talk), MCVideo, and MCData, enabling seamless voice, video, and data communication over 5G/LTE networks.
Unmatched Security
The device is equipped with multi-layered security protection, including an independent security chip compliant with IC/COS CC EAL5+ standards, alongside a robust encryption and key management mechanism.
Powerful Performance
Powered by a high-performance 8-core processor with a 2.7GHz main frequency, the PNC660 ensures smooth multitasking and seamless operation. Its 5000mAh detachable battery provides all-day power, while the 33W fast charger fully recharges the device in just 1.5 hours.
Personnel Safety
The PNC660 enhances safety with Man Down Detection and Lone Worker Mode, alerting dispatch in emergencies. Covert Mode disables alerts for discreet operations, while Confidential Mode deactivates GPS, MIC, and camera to prevent monitoring.
User-centric Design
The PNC660 offers a Secure Key for security modes, a Smart Key for quick actions, and dual Type-C ports for simultaneous charging and accessories. Easily install apps and access PoC groups instantly via a home screen widget.
Rugged Durability
Reliability is key. The PNC660 undergoes 40+ rigorous tests, including 400,000 key presses and 1.5-meter drop resistance, ensuring rock-solid performance in any environment. Built to last, designed for dependability.
Accessories for PNC660 450MHz MCX
Included as standard with PNC660 450MHz MCX
Related products that work with the PNC660 450MHz MCX
Technical Specifications
Frequency Band
- 2G
- 850/900/1800/1900
- WCDMA
- B1/B2/B4/B5/B8
- LTE
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B26/B28（Full Band）/B66/B68/B71 LTE-TDD: B34/B38/B39/B40/B41(2496~2690MHz) /B42/B43/B48
- NR
- N1/N2/N3/N5/N7/N8/N12/N20/N28/N38/N40/N41/N48/N66/N71/N77/N78/N79
- HPUE
- B41/B42/N41/N78/N79
- 4X4 MIMO
- N41/N77/N78/N79
- NR 2T4R
- N41/N77/N78/N79
- 450MHz
- B31/B72
- Notes
- RF Uses PAMID Solution; EN-DC and CA Combinations Defined in Sheets "EN-DC Combination Requirements" and "CA Combination Requirements"
- * Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
General
- Operating System
- Android 14+
- Processor
- 6nm, Octa-core（1×2.7GHz, 3×2.4GHz,4×1.9GHz）
- Al Performance
- ~13 TOPS
- Dimensions(H×W×D) mm
- 166.6mm x 77.6mm x 14.3mm (without external antenna)
- Weight
- 290g
- Screen Size
- 6.3-inch FHD 1080x2340 Corning Gorilla Glass 5
- Cameras
- Front: 13 MP, Rear: 50 MP and 8 MP
- FlashLight
- Available
- Battery
- 5,000 mAh
- Card Slot
- Nano-SIM Card * 2, Supports eSIM, TF Card * 1
- Motor
- Available
- Charging
- USB Type-C Fast Charge (33W)
- Memory
- RAM: 8GB, ROM: 128GB/256GB
- Sensors
- Fingerprint Sensor, Accelerometer, Gyroscope, Geomagnetic Sensor,Proximity&Light,Barometer
- Display
- 6.3-inch FHD 1080×2340 Waterdrop Display Supports Wet-Hand Operation and Glove Mode
- Card Slots
- Nano ×2 (Supports Dual 5G Standby, Single Active); Supports eSIM
- Camera
- Number of Cameras: 3 (Rear ×2, Front ×1);Rear Main Camera: 50MP PDAF Autofocus;Rear Secondary Camera: 8MP Wide-Angle (FOV 120°);Front Camera: 13MP; Flashlight: Dual Flashlights
- Speaker
- 3W
- WLAN
- Supports 802.11 a/b/g/n/ac/ax, 2.4GHz+5GHz+6GHz
- Positioning
- GPS Dual-Frequency/GALILEO/A-GPS
- NFC
- Available
- Video Resolution
- Encode 4K 30fps, Decode 4K 60fps
- Interfaces
- Bottom USB Type-C 3.2 & Side USB Type-C Port, Supports DP1.4
- Front Indicator Light
- Available (one light with red, green, and blue colors)
- * Product images, specifications, features, and accessories shown on this page are subject to change due to ongoing technology upgrades and production improvements. To ensure you receive the correct product and compatible accessories, please contact the Hytera sales team for the latest information before placing an order. Hytera reserves the right to modify product details without prior notice.
Environmental
- Operating Temperature
- -20℃to +60℃
- Storage Temperature
- -30℃to +70℃
- Dust & Water Protection
- IP68
- Vibration,Drop&Shock
- 1.5m
- Environmental Compliance
- RoHS/REACH
- ESD
- IEC 61000-4-2, ±12 kV (Air); ±8 kV (Contact)
- Certification
- CE/GMS/IP68/MIL-STD 810H /E112 /common charging/EN18031
