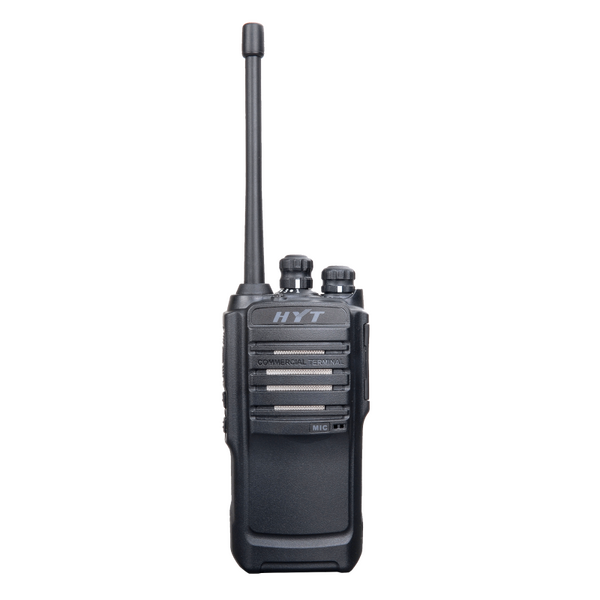

TC-446SE (enhanced)

Handheld | Analogue

Highlights

Functions

Accessories for TC-446SE (enhanced)

Included as standard with TC-446SE (enhanced)

Carrying

NCN001

Open Non-Swivel Carry Case with Belt Loop

NCN019

Nylon chest pack -- for BD5, BD6, PD4, PD5, PD6, PD7 series and PD985, PT560H, PT580H Plus

PCN006

Waterproof Bag -- for portable radios with a centrally mounted antenna

BC12

Belt Clip -- for TC-610, TC-620, TC-610P, POWER446, TC-446S, TC-508, TC-518, TC-580

RO03

Nylon Wrist Strap

Charger & Power

CHV09

Vehicle Power Adapter

MCA08

Six-Unit Charger incl. Power Adapter -- for TC-446-ENH, TC-508 U9, AP585, BP5, PD4, PD5, PD6, PD7, PT5 series and PD985

PS7501

Switching Power Adapter 12 V DC, 7 A -- for multi-unit chargers MCA02, MCA03, MCA05, MCA06, MCA08, MCA10, MCL19, MCA22, MCL23, MCL30, MCL33, MCL34, MCL35, MCL35-S, MCL36, MCN05

MCA16

MCA16 top 600x600

HySEIS Enhanced Multi-Unit Charger for Li-ion/Li-polymer batteries (incl. PS15002) - for AP585, BP5, HP5, HP6, HP7 and PT590

PS15002

PS15002 600x600

Power Adapter without power cable -- for multi-unit chargers MCA16, MCA20, MCA24, MCA25, MCA26, MCL32, MCL38, MCL39, MCL41

CH10A07

MCU Rapid-Rate Desktop Charger - for TC-508 U9, TC446S-ENH, AP585, BP515, BP565, PD4, PD5, PD6, PD7, PD715Ex, PD795Ex, PD795IS, PD985, PT560H, PT580H Plus, PT790Ex

PS1044

Power Adapter for Rapid Charger (Dual UK & Euro standard plug)

Audio

ACM-01

Microphone with PTT and 3.5 mm audio socket, without earphone (IP54) -- for TC-446S, TC-508, BD5, BD615, PD4 and PD5 series

EA-01

Earpiece with Acoustic Tube (Receive-Only) (3.5mm Audio Plug)

EH-01

C-Style Earpiece (Receive-Only) (3.5mm Audio Plug)

EH-02

Swivel Style Earpiece (Receive-Only) (3.5mm Audio Plug)

ES-01

Earpiece (Receive-Only) (3.5mm Audio Plug)

ES-02 (EOL)

Earbud with Acoustic Tube (Receive-Only) (3.5mm Audio Plug) - EOL, available while stocks last, replaced by EA-01

EHM04-A

EHM04 A 600x600 45

EHM04-A - Earset with in-Line MIC & PTT -- for POWER446, TC-446S, TC-508, TC-510, TC-518, TC-580, TC-610, TC-620, TC-700

EHM15-A

EHM15 A 470x558

Black D-style Earpiece with In-line PTT and Microphone -- for BD, PD4, PD5 series and several analogue radios

EHM18-A

EHM18 A 470x558

Black C-Style Earpiece with In-line PTT and Microphone -- for BD, PD4, PD5 series and several analogue radios

SM50M1

SM50 M1 360x300

Remote Speaker Microphone (with 3.5mm jack) for BD5/PD4/PD5 series

Cables

PC76

Programming Cable (USB) for BD5, PD4 series, BD615 and analogue TC radios.

Battery

BL1720

BL1720 1 600x600

Li-ion Battery (1700 mAh) - for TC-508 U9, TC-446-ENH

Related products that work with the TC-446SE (enhanced)

Technical Specifications

General

Frequency range: Licence Free 446MHz
Channels & zones: Channel capacity: 48
: Zone capacity: 3
: Channels per zone: 16
Channel spacing: 12.5 kHz
Operating voltage: 7.4V (rated)
Battery: 1700 mAh Li-Ion Polymer
Battery Life (5-5-90 Duty Cycle): 15 hours
Frequency stability: ±2 ppm
Dimensions (H x W x D) (mm): 113 x 54 x 32 mm
Weight: about 240 g
Display: none
Keypad: none
Programmable Buttons: 2
Bluetooth (Optional): BT 5.0 BLE+EDR (for APP prpgramming only)

Receiver

Sensitivity: 0.14 μV (12dB SINAD @12.5 kHz)
Adjacent channel selectivity (ETSI): 60 dB @12.5 kHz
Intermodulation (ETSI): ≥65dB @12.5 kHz
Spurious Response Rejection (ETSI): ≥70dB @12.5 kHz
Blocking (ETSI): ≥84dB
Hum and noise: 40 dB @12.5 kHz
Rated audio power output: 0.5 W
Rated audio distortion: ≤ 5%
Audio response: +1 to -3 dB
Conducted spurious emission: ≤ -57 dBm

Transmitter

RF power output: 0.5 W
FM modulation: 11 K0F3E @12.5kHz
Conducted/radiated emission: -36dBm @<1GHz
: -30dBm @>1GHz
Modulation limiting: ±2.5kHz @12.5kHz
FM hum & noise: 40dB @12.5kHz
Adjacent channel power: 60dB @12.5kHz
Audio response: +1 to -3 dB
Audio distortion: ≤ 3%

Environmental Specifications

Operating temperature: -30°C to +60°C *
: * radio only (battery -20°C)
Storage temperature: -40°C to +85°C
ESD: IEC 61000-4-2 (level 4)
: ±8 kV (contact)
: ±15 kV (air)
Ingress protection: IEC60529-IP54
Humidity: MIL-STD-810 H
Shock and vibration: MIL-STD-810 H

Features

5 Tone Signalling: NO
2 Tone Signalling: NO
HDC1200 Signalling: NO
VOX: YES
Channel Scan: YES
Scrambler (Analogue): NO
